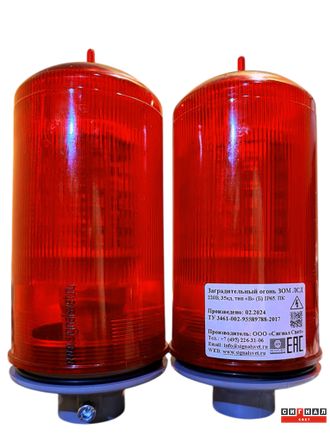

ZOM LSD>35cd, type «B», 220VAC, IP65. Polycarbonate
в наличии
LED obstruction light fully complies with the requirements of ICAO, MAK (Interstate Aviation Committee), and FAP 121 (Federal Aviation Regulations). It meets international standards for low-intensity Type A obstruction lights, designed for installation on fixed structures. The unit is equipped with an LSD M 120LED red lamp, ensuring high visibility and long operational life.
Purpose of the Signaling Device The ZOM LSD >35 cd, Type B, 220V obstruction light is designed for the visual marking of fixed high-rise and elongated structures that pose a potential hazard to aviation safety.
Key Technical Specification
| Light Source |
Semiconductor LED lamp with red emission. The lamp is included in the supply package. |
| Luminous Intensity | 50 cd* |
|
Main beam (normalized value): |
10° |
|
Actual beam divergence: |
65° |
|
Horizontal beam spread: |
360° |
|
*Standardized to at least 10 cd according to the following regulations: • REGA RF-94 • ICAO • IAC • Resolution of the Department of Air Transport of the Ministry of Transport of the Russian Federation (Letter No. DV.6.1-63 dated 01.10.1992).
|
|
|
Compliance with Standards |
The obstruction light meets the technical requirements and standards for low-intensity obstruction lights: • Ministry of Transport of the Russian Federation Order No. 262, dated August 25, 2015 • ICAO Annex 14, 4th Edition, July 2004 • ICAO Low-Intensity Type B • TR CU 004/2001 • TR CU 020/2011 • TR EAEU 037/2016 • GOST 12.2.007.0-75 • GOST 30804.6.4-2013 • GOST 30804.6.2-2013 |
| Light Characteristics | Emission color: Red (625 nm) |
| Radiation type: | Omnidirectional, continuous |
| Operating temperature range: |
-50°C to +50°C |
| Mean time between failures: | 80,000 hours |
|
Input voltage: |
AC 85–275V or DC 48V (to be specified when ordering) |
|
Maximum power consumption: |
≤9W |
|
Wire connection: |
1.5 mm² with WAGO terminal clamps |
|
Electrical protection class: |
I |
| Light filter: |
mpact-resistant, frost-resistant optical polycarbonate with UV protection |
| Base type: |
E27, ceramic |
| Housing: |
Impact-resistant, frost-resistant polycarbonate with UV protection |
| Protection rating: | IP65 |
|
Climatic category: |
UHL I (GOST 15150) |
|
Pipe mounting: |
Internal thread G 3/4” at the base, secured with an M6 screw |
|
Overall dimensions: |
225х105мм |
|
Weight: |
0,4кг |
|
Warranty |
3 года |
Environmental Operating Conditions
|
Maximum atmospheric pressure: |
106.7 kPa (800 mmHg) |
|
Minimum atmospheric pressure: |
84 kPa (630 mmHg) |
|
Maximum relative humidity at +25°C: |
98% |
|
Maximum operating altitude: |
Up to 3000 m |
Application Areas
• High-rise buildings and structures
• Industrial chimneys and cooling towers
• Telecommunication relay towers
• Tower cranes
• Bridge supports
• TV towers
Scope of Supply
|
Low-intensity red LED obstruction light ZOM LSD>35cd, Type “B”, 220V AC, IP65. Red impact-resistant optical polycarbonate light filter with UV protection. LED lamp LSD M 120LED (>50cd, 220V, 625 nm, E27) for obstruction lights. |
1pc. |
|
User Manual & Product Passport |
1pc. |
|
Declaration of Conformity EAEU N RU D-RU.RA05.B.14849/23 |
1pc. |
|
Declaration of Conformity EAEU N RU D-RU.RA05.B.14851/23 |
1pc. |
|
Certificate of Compliance with GOST R ISO 9001:2015 No. ST.RU.0001.M0024206 |
1pc. |
| Packaging | 1pc. |
Warranty & Service
LLC “Signal Svet” guarantees compliance with ТU 27.40.39-001-20383233-2017 and the requirements of:
• TR CU 004/2011 “On the safety of low-voltage equipment”
• TR CU 020/2011 “Electromagnetic compatibility of technical means” The product is covered by a 36-month warranty from the date of sale, provided the consumer follows the installation and operating instructions. During the warranty period, replacement of failed obstruction lights is carried out by LLC “Signal Svet” free of charge.
IMPORTANT NOTICE:
When selecting LED lamps for obstruction lights used in the aeronautical lighting of stationary objects, it is crucial to consider the following factors: During operation, dust, soot, condensation, frost, and ice accumulate on the light filter, reducing the brightness of the obstruction light by up to 40%, depending on environmental conditions. For Type A obstruction lights, LED lamps must have a luminous intensity between 20 cd and 30 cd to compensate for this brightness reduction. Special attention must be given to optical parameters:
• Candela (cd) – a unit of luminous intensity.
• Lumen (lm) – a unit of luminous flux.
These are fundamentally different values and should not be confused. Given the strict requirements imposed on aviation lighting systems, Signal Svet equips low-intensity Type A and Type B obstruction lights with certified LED modules specifically designed for obstruction lighting, with a luminous intensity range of 30 cd to 50 cd.
